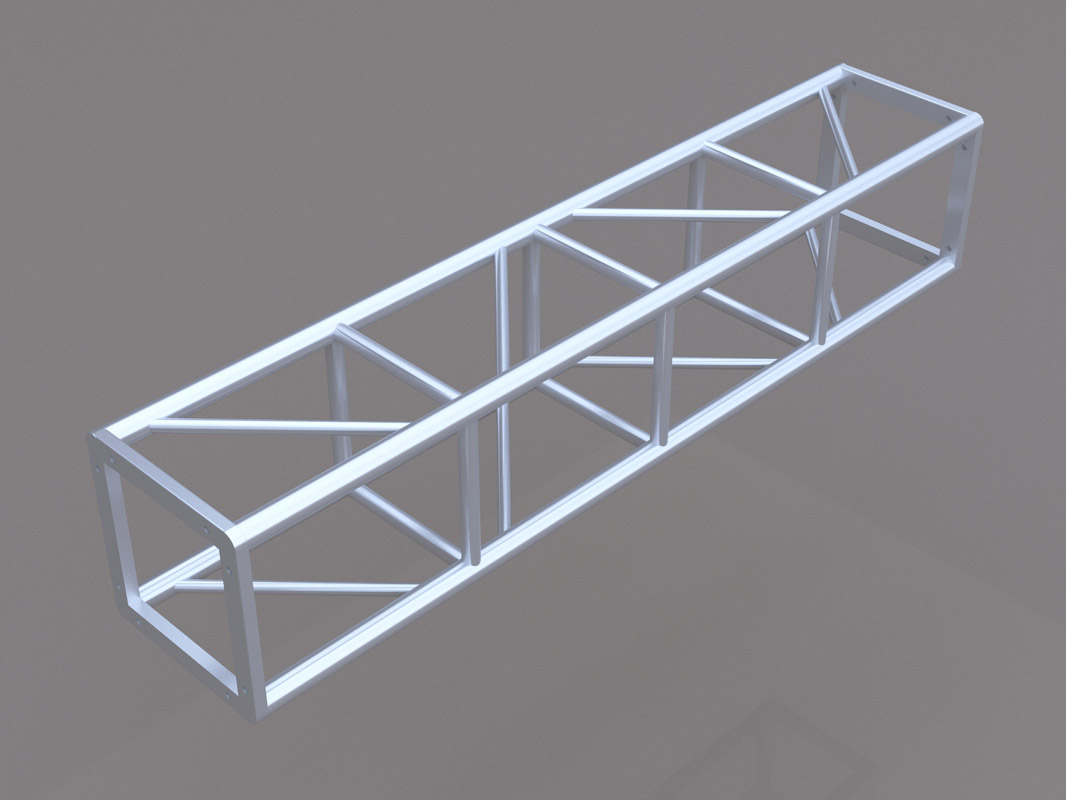

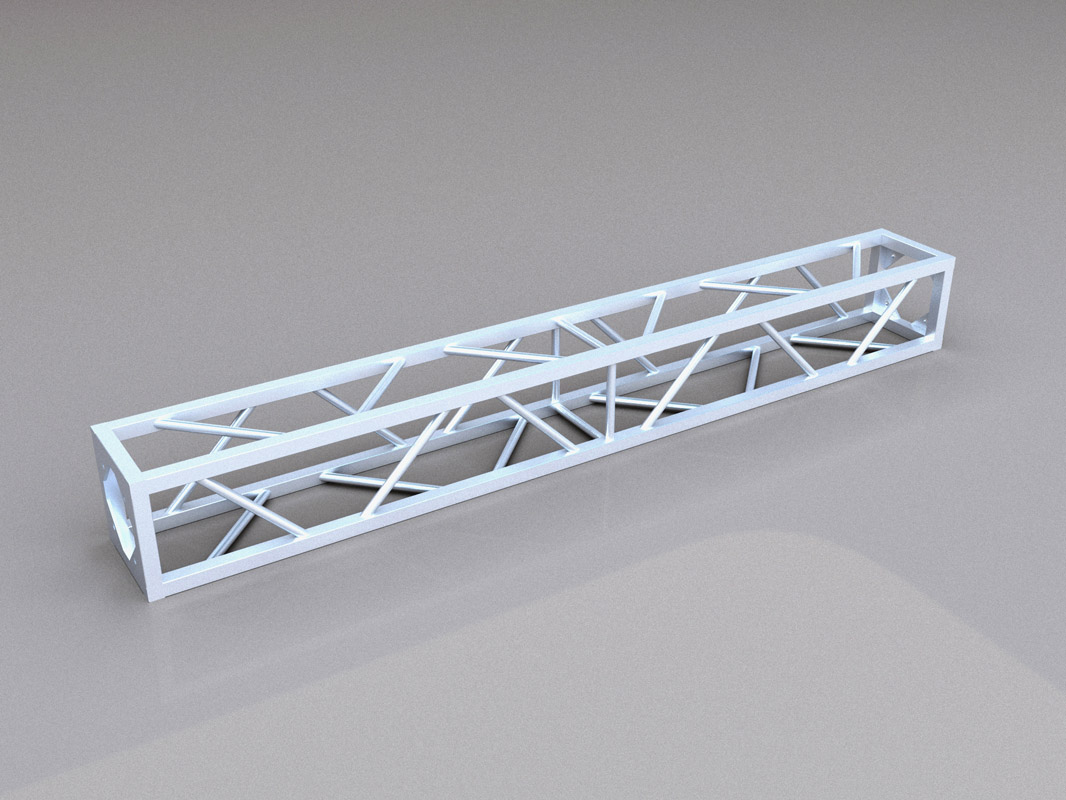

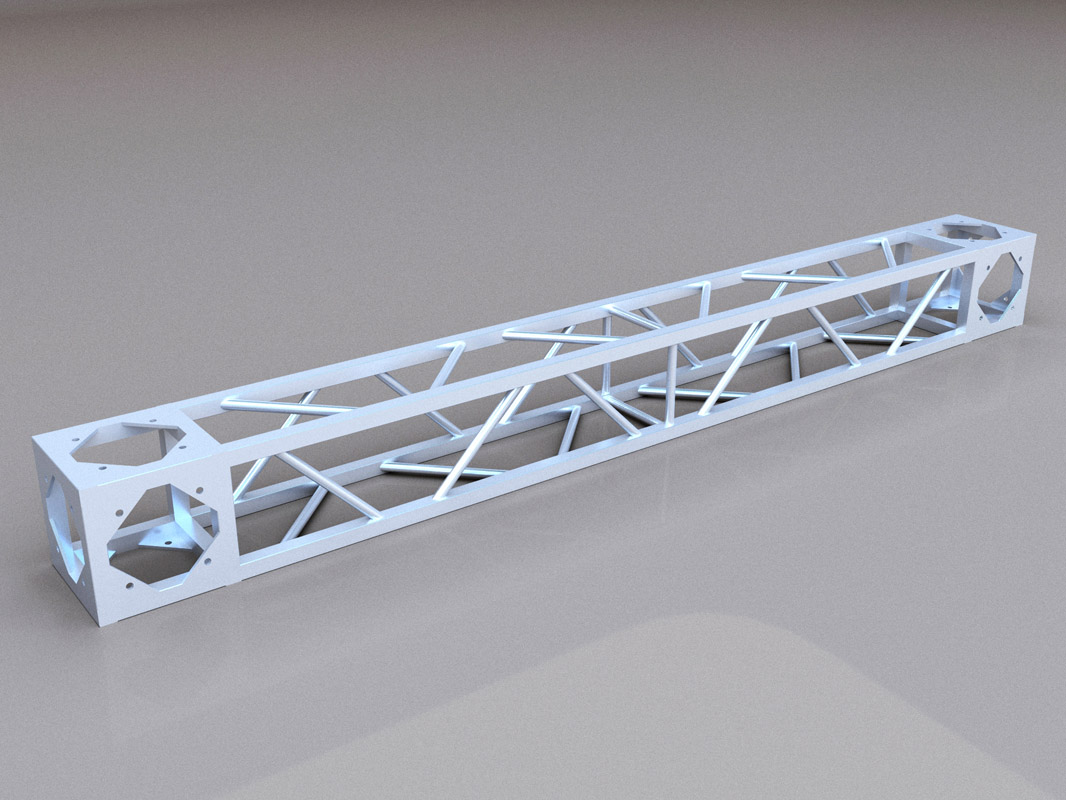

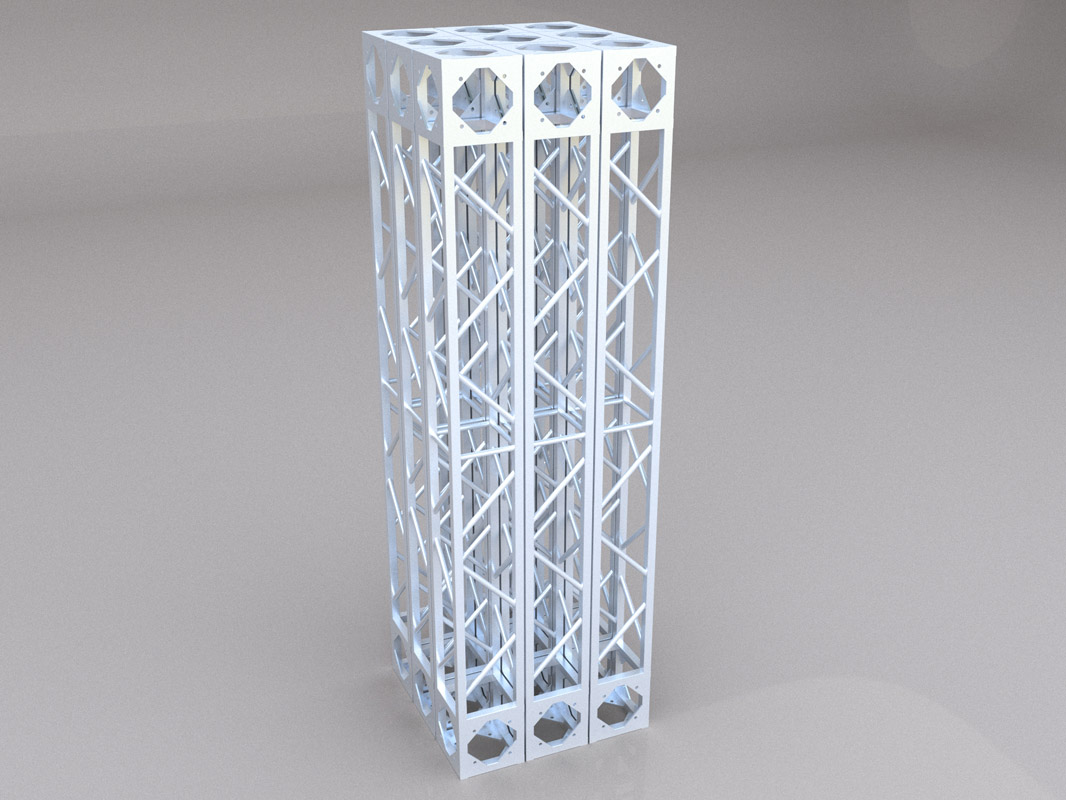

- Bolt Aluminum Truss
-
Introduction:
The Unitruss decorative and architectural truss has been relentlessly developed for over three decades to fulfill a broad range of requirement for exhibition builders, entertainment venues, retail outlets, architectural installations and many other diverse needs. Using a combination of automated processes and traditional craftsmanship, all the truss products are constructed from high strength 6082-T6 and 6061-T6 aluminum and are TUV quality approved. In combination with the corners and accessories, Unitruss system provide complete and flexible solutions to any design challenge.
Unitruss Aluminum Truss also designed as a lightweight, light-duty truss system with a mainly decorative function and high loading capacity.
- PDF Down
Product Detail
Shapes：

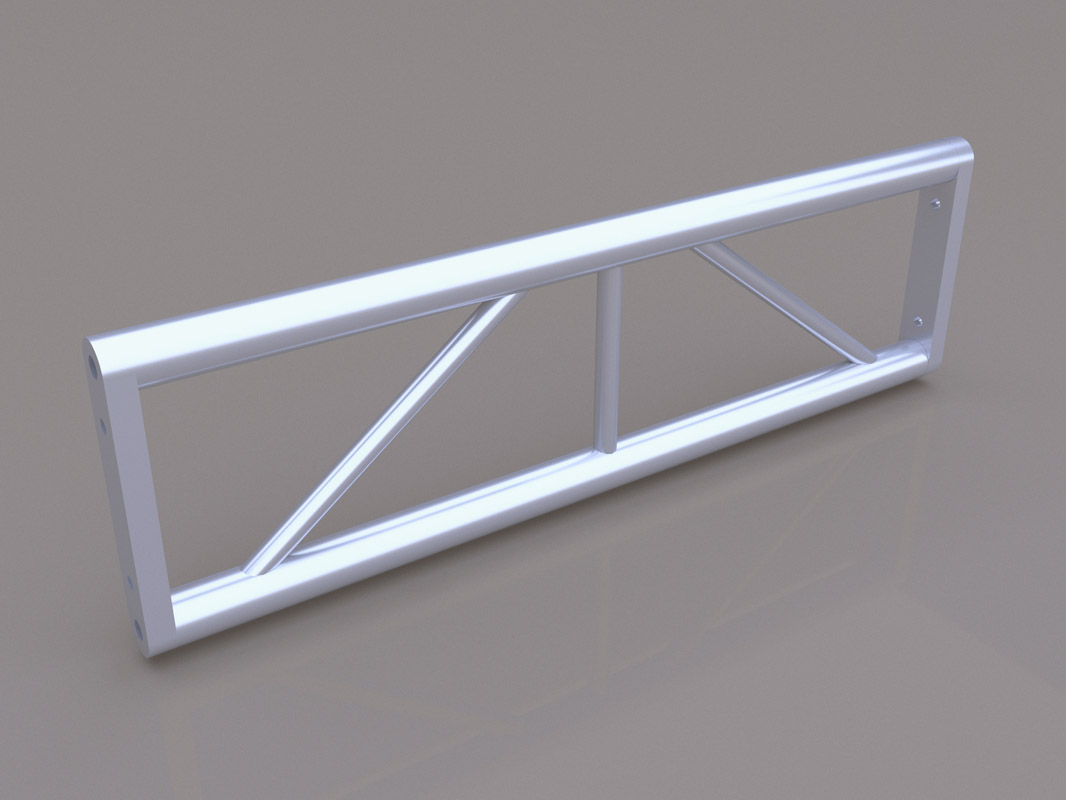

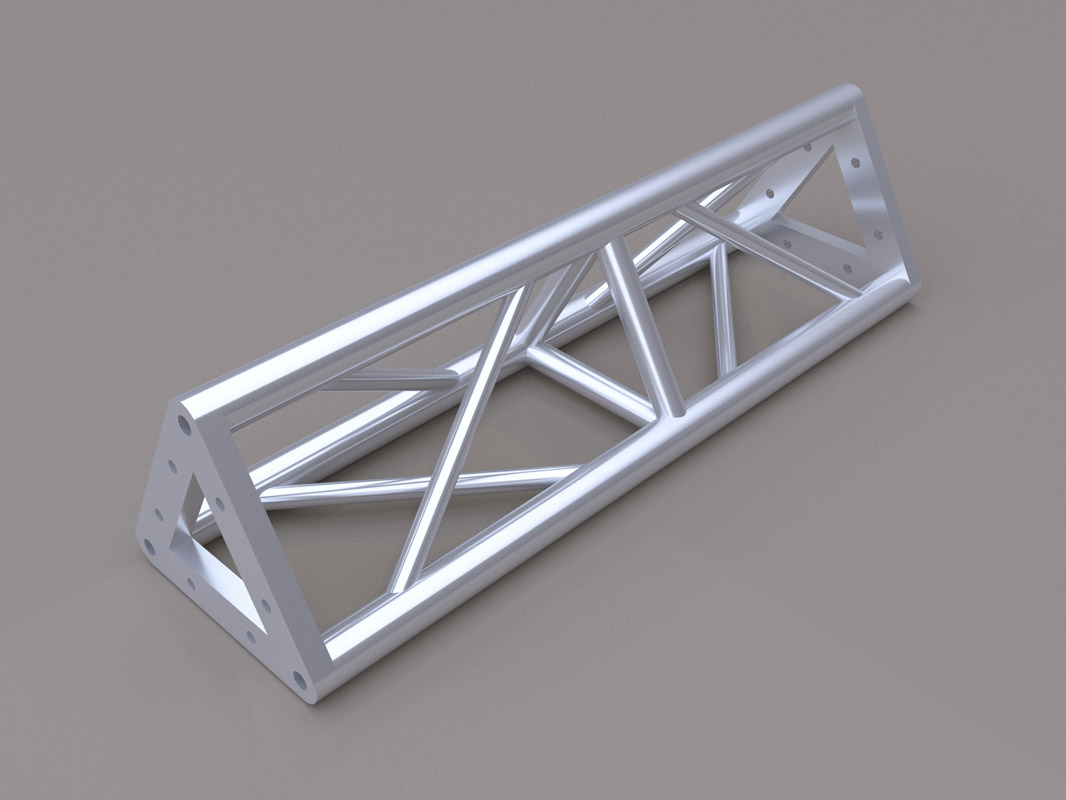

Square Truss，Triangle Truss，Step Truss，Single Tube Truss
Normal Length：
0.25M,0.5M,1M,1.5M,2M,2.5M,3M,3.5M,4M
Material：
EN AW 6061-T6, 6082-T6 Aluminum Alloy
|
Item |

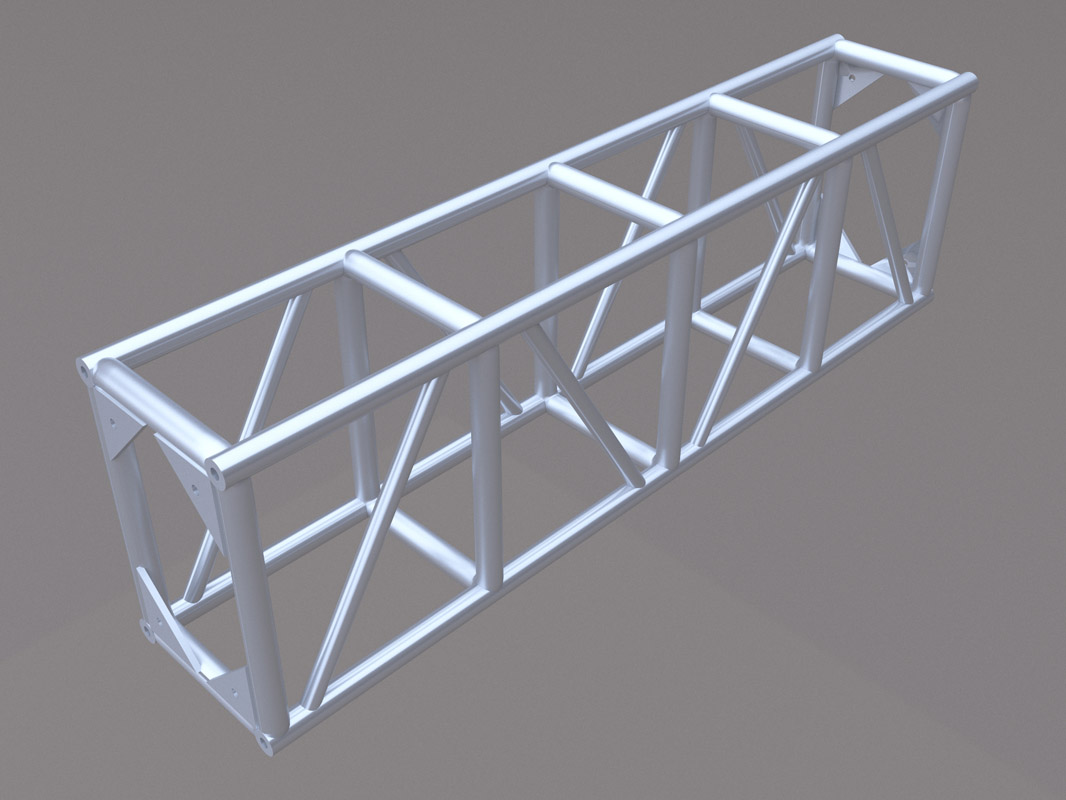

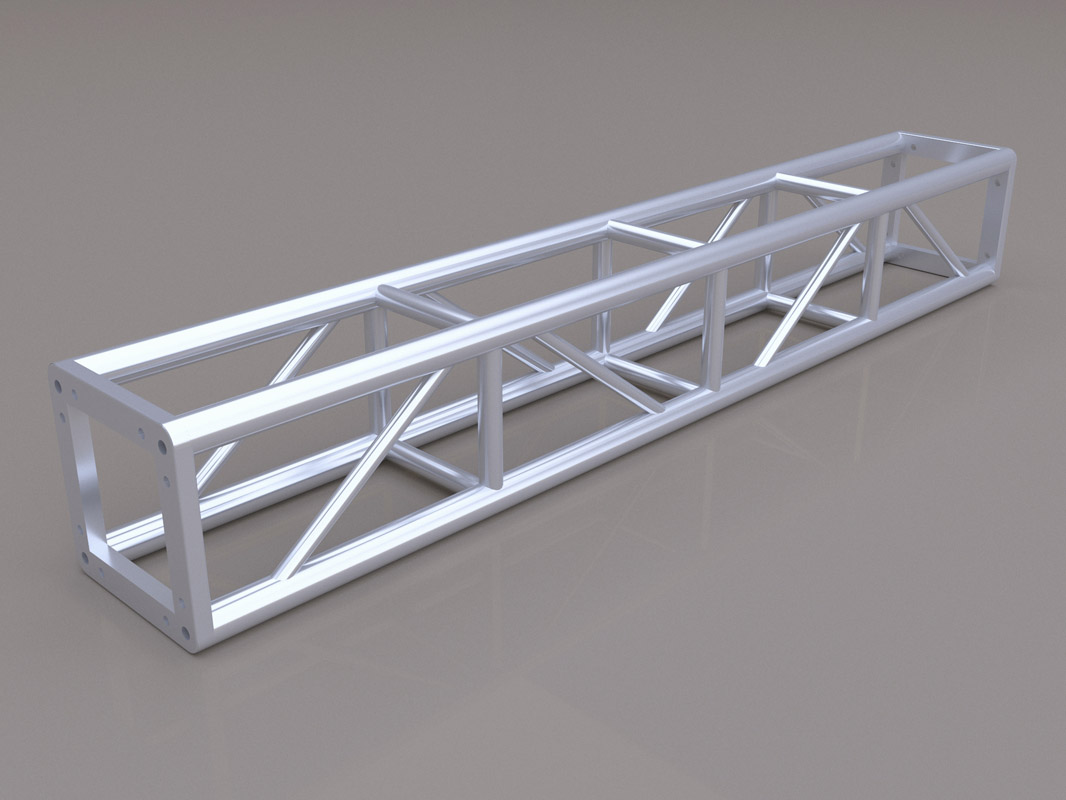

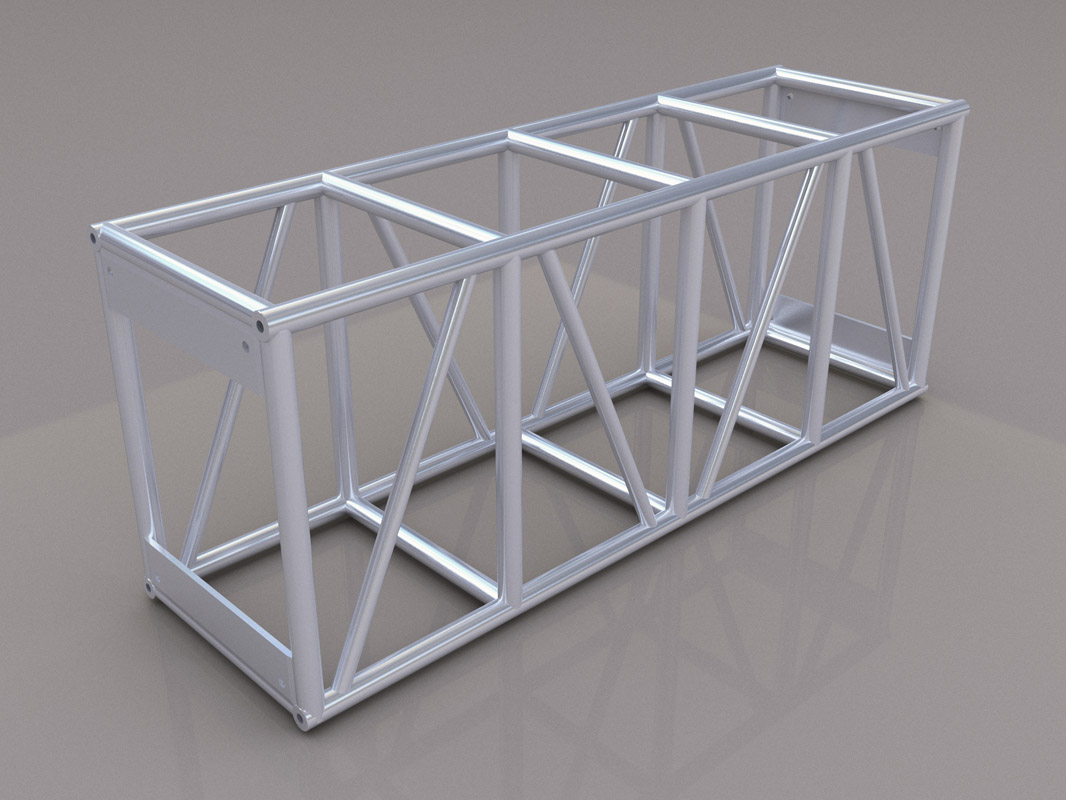

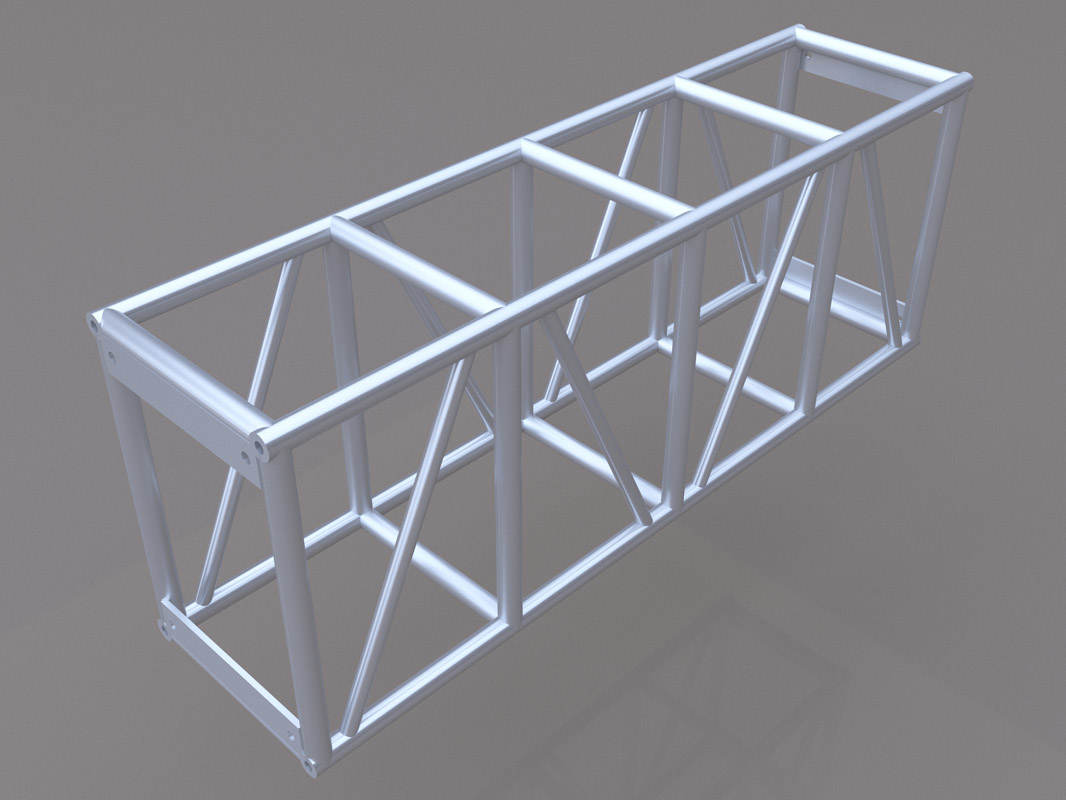

Bolt Square Aluminum Truss |
|||||
|
Model |
Size(MM) |
Main Tube |
Parallel Tube |
Inclind Tube |
Max Span |
Average Loading/M |
|
4BT2020 |
200*200 |
35*2MM |
25*2MM |
25*2MM(2Sides) |
8M |
30KG |
|
4BT2525 |
250*250 |
50*3MM |
25*2MM |
25*2MM(2Sides) |
9M |
40KG |
|
4BT3030 |
300*300 |
50*3MM |
35*2MM |
26*2MM(2Sides) |
||
|
4BT3535 |
350*350 |
50*3MM |
35*2MM |
25*2MM(2Sides) |
12M |
62KG |
|
4BT4040 |
400*400 |
50*3MM |
35*2MM |
25*2MM(2Sides) |
16M |
70KG |
|
4BT4060 |
400*600 |
50*3MM |
50*2MM |
35*2MM(2Sides) |
12M |
75KG |
|
4BT5050 |
500*500 |
50*3MM |
50*2MM |
35*2MM(2Sides) |
16M |
75KG |
|
4BT5276 |
520*760 |
50*3MM |
50*2MM |
35*2MM(2Sides) |
20M |
80KG |
|
4BT6080 |
600*800 |
50*3MM |
50*2MM |
35*2MM(2Sides) |
22M |
80KG |
|
Note: Please DO NOT Exceed the reasonable Loading and Span. |
||||||
