- WSTB1010-4 WSTB1020-4 WSTB1020-6
-
Introduction:
Cinow STB Series Pro Concert Stages are flexible to let your imagination to create individual staging constructions. STB can be transformed and installed quickly and easily, often without the need for any tools. It comes in a variety of standard sizes and shapes, to meet all your imaginable stages constructions. All the stages can be matched with telescopic legs and fixed legs. The Telescopic Legs and the legs balancers are good for any uneven floor.
- PDF Down
Product Detail
Application:
Cinow STB Series Pro Concert Stages are used in the events, indoor and outdoor concert, hotel ,exhibition market, wedding party, Arts and Cultural Performances, Amusements, the presentation of products, etc.
Features for STB Series 18MM Plywood Stages |
|||||||
Model |
WSTB6161-4 |

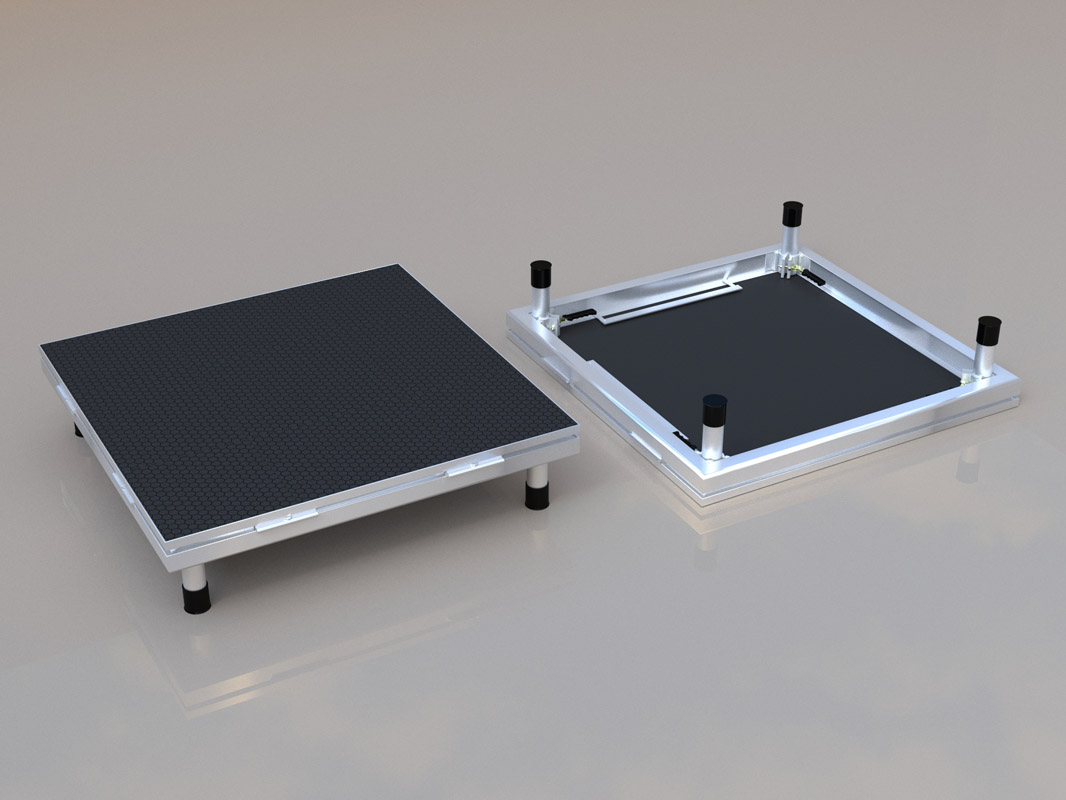

WSTB1010-4 |
WSTB1212-4 |

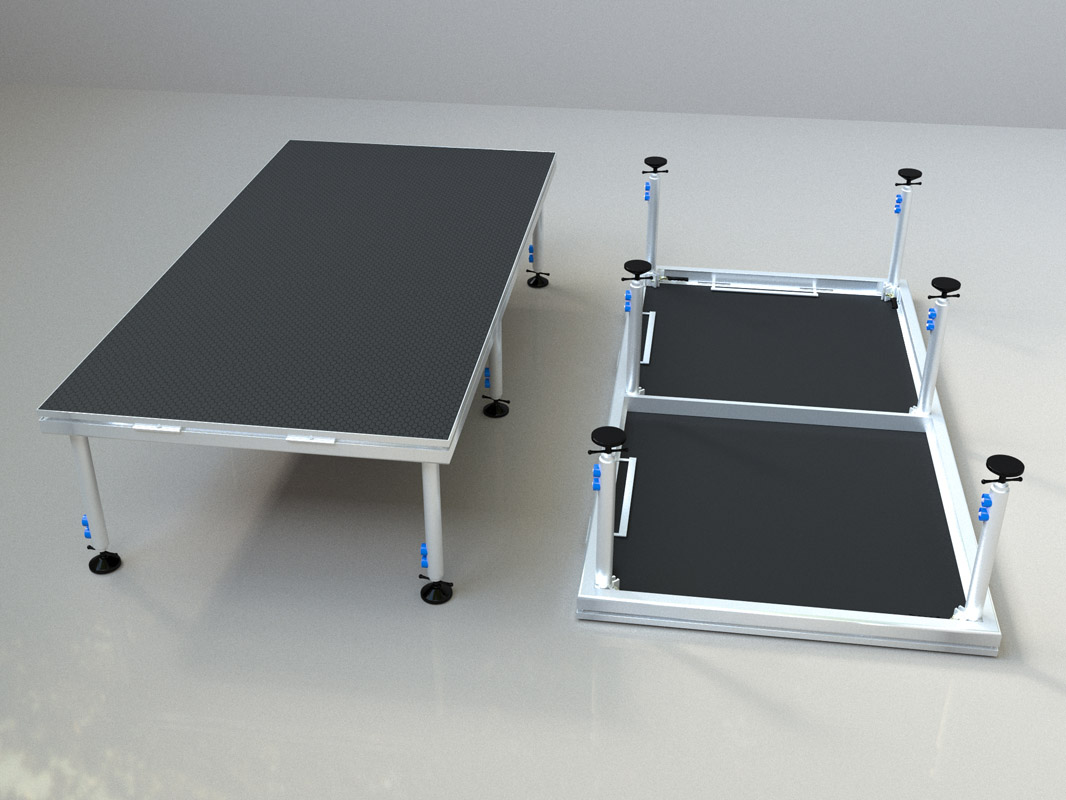

WSTB1020-4 |

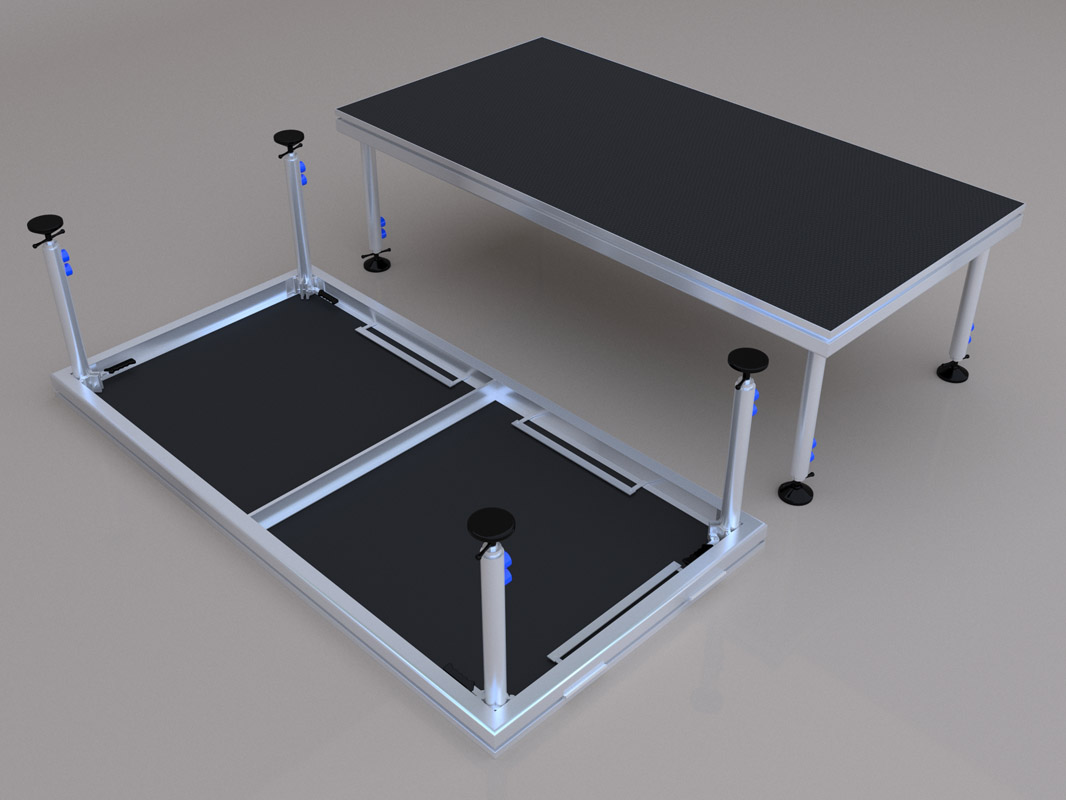

WSTB1020-6 |
WSTB1224-4 |
WSTB1224-6 |
Size(M) |
0.61*0.61*0.085 2ft *2ft |
1*1*0.085
|
1.22*1.22*0.085 4ft*4ft |
1*2*0.085 |
1*2*0.085 |
1.22*2.44*0.085 4ft*8ft |
1.22*2.44*0.085 4ft*8ft |
Legs Matched |
4PCS |
4 PCS |
4 PCS |
4 PCS |
6 PCS |
4 PCS |
6 PCS |
Loading |
1500KG |
1000KG |
950KG |
900KG |
950KG |
850KG |
900KG |
Self Weight |
17.00KG |
20.50KG |
31.00KG |
37.00KG |
37.50KG |
48.50KG |
49.00KG |
Gross Weight |
17.50KG |
21.00KG |
31.50KG |
37.50KG |
38.00KG |
49.00KG |
49.50KG |
Volume(CBM) |
0.034 |
0.089 |
0.131 |
0.175 |
0.175 |
0.259 |
0.259 |
Top Board |
1、18MM Poplar Film Faced Plywood ,Anti-Skidding &Water-Resistant Top Layer, ( Black coating, Red Coating, Unfinished, Clear Varnish ) 2、18MM Birch Film Faced Plywood ,Anti-Skidding & Water-Resistant Top Layer, ( Black coating, Red Coating, Unfinished, Clear Varnish ) 3、18MM Environmental Laminated Melamine Plywood (Many Colors Optional) |
||||||
Aluminum Frame |
6061-T6 Aluminum Alloy ,Our Patented Specially extruded Aluminum Profile in 3MM thickness. The Top is bolted and glued to the frame to reduce the noise and vibration. All decks are available in metric and imperial sizes. |
||||||
DO |
1、Check to ensure the stage floor is properly aligned and completely level. 2、Check the application conditions of your stage, as the type of use is directly related to safety issues like handrails. 3、Brace your staging legs when needed for stability 4、Store your stages upside down to decrease setup time and maintain your stage at regular intervals. 5、Inform your crew beforehand on safe and correct installation procedures |
||||||
DO NOT |
1、Exceed the Maximum Allowable Load , Exceed the maximum building height of the stage or its support frame 2、Mix to be matched with different stages from different factories 3、Build stages in poor conditions, unstable ground, strong and continual raining days, the payload might be reduced substantially. 4、Apply loads before knowing their exact weight ,size and load. 5、Use unfinished Cinow Stage top board in outside conditions. 6、Use the hang-on profile without reducing the maximum allowable payload. 7、Use Cinow Elements as ballast for your roof without using the proper support frame. |
Features for Telescopic Legs : |
|||||||||
Model |
H3040B |
H4060B |
H5080B |
H6010B |
H7012B |
H8014B |
H9016B |
H1018B |
H1120B |
Telescopic Range(CM) |
30~40 |
40~60 |
50~80 |
60~100 |
70~120 |
80~140 |
90~160 |
100~180 |
110~120 |
Outter Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||
Inner Tube |
6061-T6 Round Aluminum Patented Tube,4.3*3MM. |
||||||||
Feet Balancer |
Environmental Round Black Rubber leg balancer in diameter 10CM. / Uniformly Distributed Loading: 250KG. |
||||||||
Self Weight(KG) |
1.17 |
1.23 |
1.47 |
1.68 |
1.90 |
1.96 |
2.03 |
2.09 |
2.15 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||
How it works? |
1、Telescopic Legs combine adjustable height and high loading capacity. Sturdy Road-rugged mechanism and built-in tape measure for easy mounting. 2、Release the two M8 hexagon socket head screws, extend the leg to its required length, lock the leg at both positions to guarantee optimal grip of the telescopic mechanism. 3、Measurement on the inside of the profile indicate the total length of the leg and safe operating areas. 4、Rubber leg Balancer Prevent damage to your flooring system. The balancer is good to be fit for uneven floor. Its tilted angle is 30°. The adjustable height for Screw Rod is 3CM |
Features for Fixed Legs with Rubber Balancer : |
|||||||||||
Model |
H20B |
H30B |
H40B |
H50B |
H60B |
H70B |
H80B |
H90B |
H100B |
H110B |
H120B |
Fixed Height(CM) |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
Leg Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||||
Rubber Balancer |
Environmental Round Black Rubber leg balancer in diameter 10CM. / Uniformly Distributed Loading: 250KG. |
||||||||||
Self Weight(KG) |
0.365 |
0.435 |
0.585 |
0.705 |
0.825 |
0.945 |
1.155 |
1.275 |
1.395 |
1.515 |
1.635 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||||
Advantage |
Rubber leg Balancer Prevent damage to your flooring system. The balancer is good to be fit for uneven floor. Its tilted angle is 30°. The adjustable height for Screw Rod is 3CM. |
Features for Fixed Legs with Rubber Caps : |
|||||||||||
Model |
H20C |
H30C |
H40C |
H50C |
H60C |
H70C |
H80C |
H90C |
H100C |
H110C |
H120C |
Fixed Height(CM) |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
Leg Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||||
Rubber Caps |
Environmental Round Black Rubber leg Caps to prevent damage to your flooring system |
||||||||||
Self Weight(KG) |
0.365 |
0.435 |
0.585 |
0.705 |
0.825 |
0.945 |
1.155 |
1.275 |
1.395 |
1.515 |
1.635 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||||
Advantage |
Rubber leg Caps Prevent damage to your flooring system. |
