- Telescopic Legs
-
Introduction:
Cinow Telescopic Leg attachment system provides a straightforward yet ingenious solution that assure fast and safe stage constructions.

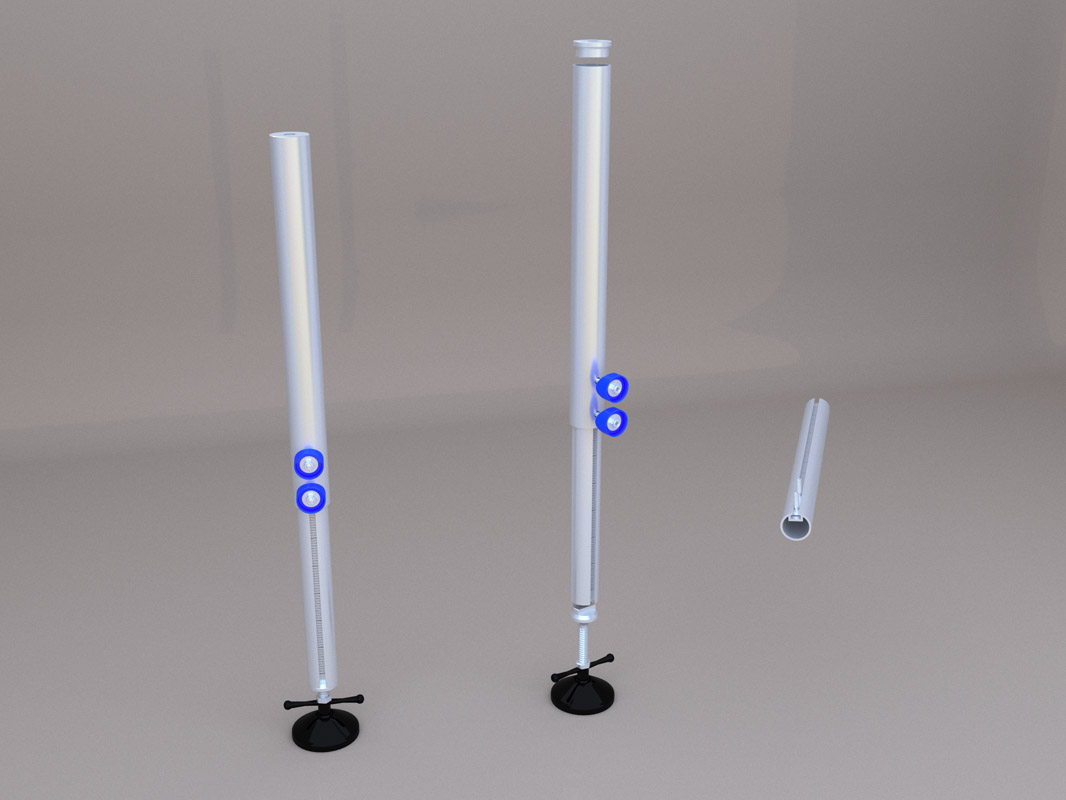

Cinow Telescopic Legs combine adjustable height and high loading capacity. Sturdy Road-rugged mechanism and built-in tape measure for easy mounting.

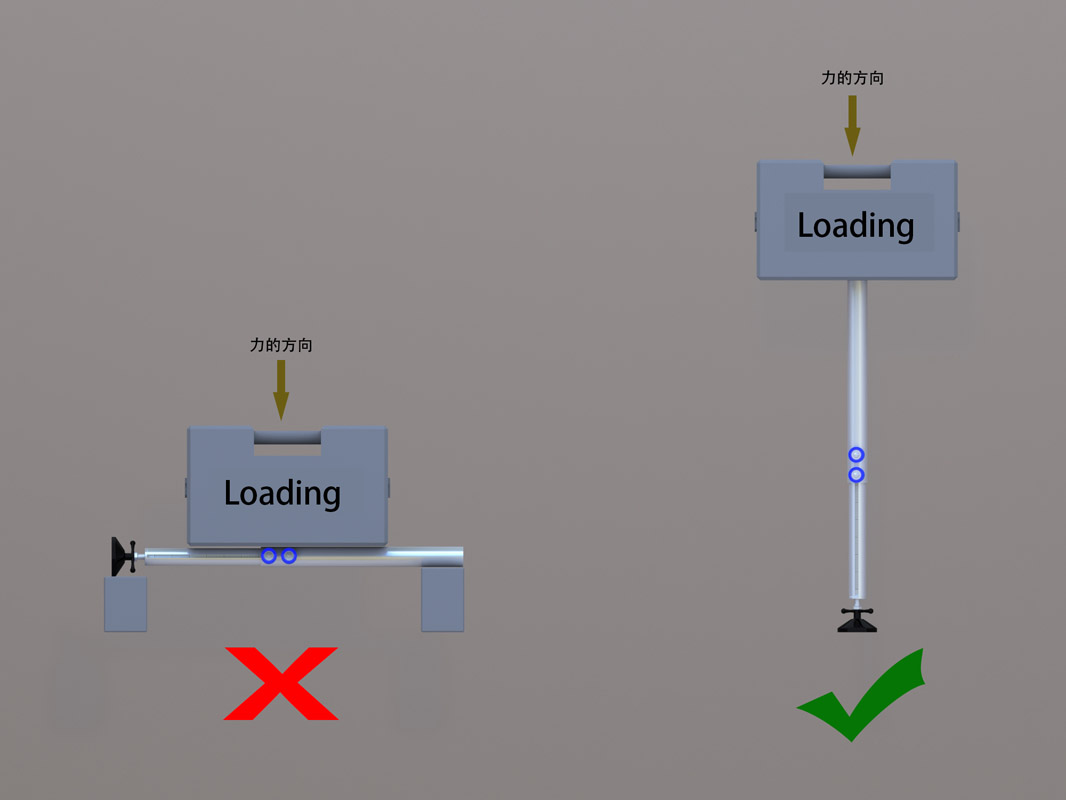

Please note that the types of the legs and the length of the legs that are used will determine the amount of loading that is allowed. Be sure to always check the loading table before you apply any loads to the decks.
- PDF Down
Product Detail
Features for Telescopic Legs : |
|||||||||
Model |
H3040B |
H4060B |
H5080B |
H6010B |
H7012B |
H8014B |
H9016B |
H1018B |
H1120B |
Telescopic Range(CM) |
30~40 |
40~60 |
50~80 |
60~100 |
70~120 |
80~140 |
90~160 |
100~180 |
110~120 |
Outter Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||
Inner Tube |
6061-T6 Round Aluminum Patented Tube,4.3*3MM. |
||||||||
Feet Balancer |
Environmental Round Black Rubber leg balancer in diameter 10CM. / Uniformly Distributed Loading: 250KG. |
||||||||
Self Weight(KG) |
1.17 |
1.23 |
1.47 |
1.68 |
1.90 |
1.96 |
2.03 |
2.09 |
2.15 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||
How it works? |
1、Release the two M8 hexagon socket head screws, extend the leg to its required length, lock the leg at both positions to guarantee optimal grip of the telescopic mechanism. 2、Measurement on the inside of the profile indicate the total length of the leg and safe operating areas. 3、Rubber leg Balancer Prevent damage to your flooring system. The balancer is good to be fit for uneven floor. Its tilted angle is 30°. The adjustable height for Screw Rod is 3CM |
