- Fixed Legs
-
Introduction:
Please note that the types of the legs and the length of the legs that are used will determine the amount of loading that is allowed. Be sure to always check the loading table before you apply any loads to the decks.
- PDF Down
Product Detail

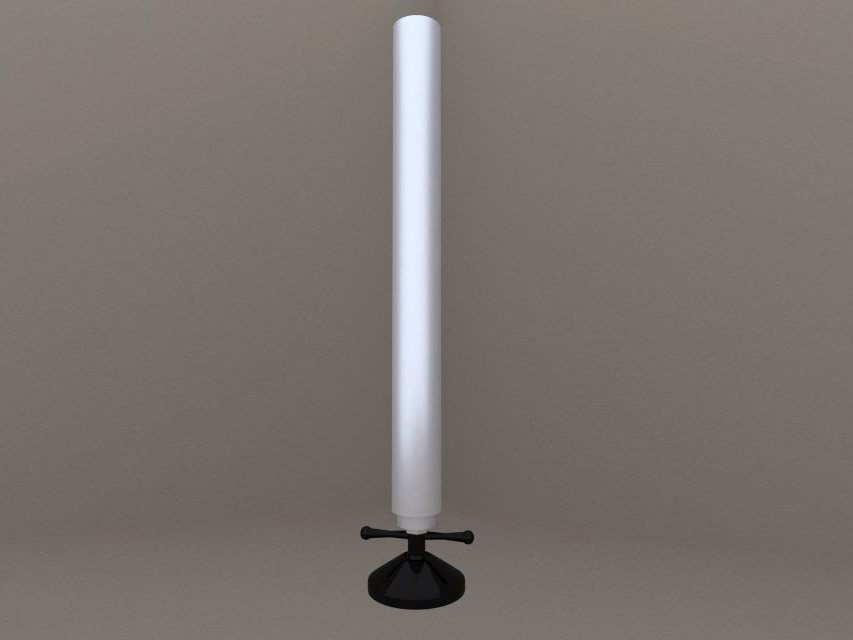

Features for Fixed Legs with Rubber Balancer : |
|||||||||||
Model |
H20B |
H30B |
H40B |
H50B |
H60B |
H70B |
H80B |
H90B |
H100B |
H110B |
H120B |
Fixed Height(CM) |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
Leg Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||||
Rubber Balancer |
Environmental Round Black Rubber leg balancer in diameter 10CM. / Uniformly Distributed Loading: 250KG. |
||||||||||
Self Weight(KG) |
0.365 |
0.435 |
0.585 |
0.705 |
0.825 |
0.945 |
1.155 |
1.275 |
1.395 |
1.515 |
1.635 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||||
Advantage |
Rubber leg Balancer Prevent damage to your flooring system. The balancer is good to be fit for uneven floor. Its tilted angle is 30°. The adjustable height for Screw Rod is 3CM. |

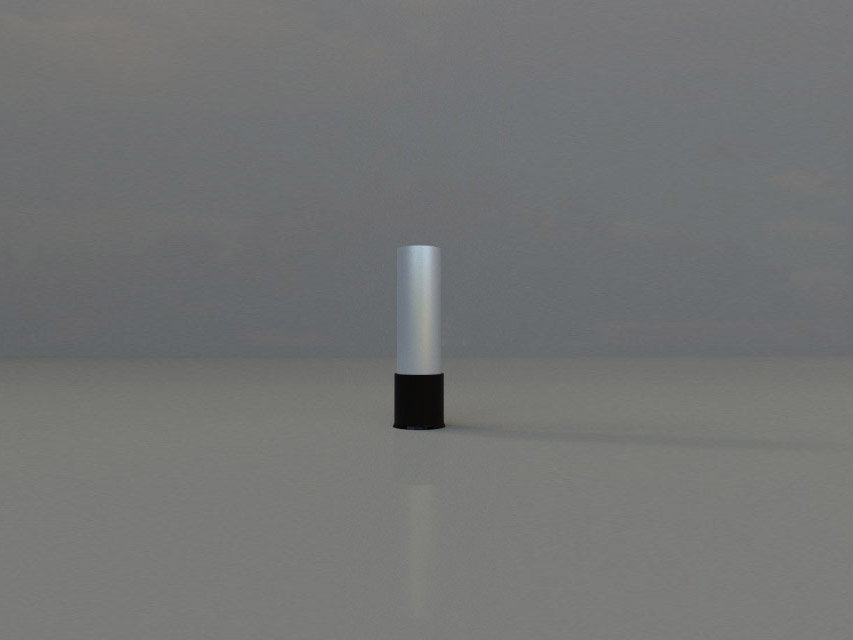

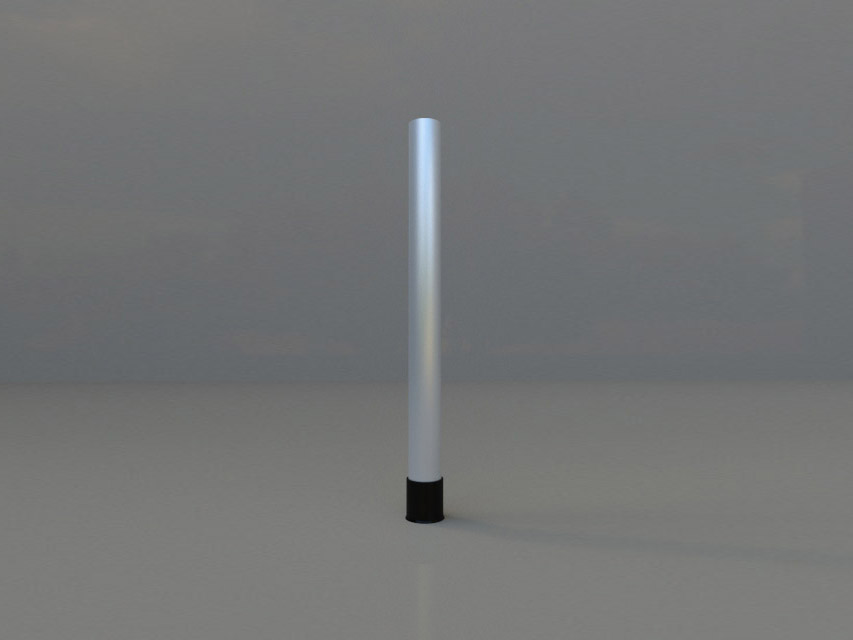

Features for Fixed Legs with Rubber Caps : |
|||||||||||
Model |
H20C |
H30C |
H40C |
H50C |
H60C |
H70C |
H80C |
H90C |
H100C |
H110C |
H120C |
Fixed Height(CM) |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
Leg Tube |
6061-T6 Round Aluminum Tube, 50*3MM. |
||||||||||
Rubber Caps |
Environmental Round Black Rubber leg Caps to prevent damage to your flooring system |
||||||||||
Self Weight(KG) |
0.365 |
0.435 |
0.585 |
0.705 |
0.825 |
0.945 |
1.155 |
1.275 |
1.395 |
1.515 |
1.635 |
Instruction: |
All the height means the total height from the floor to the stage top surface. |
||||||||||
Advantage |
Rubber leg Caps Prevent damage to your flooring system. |
