- STB Series Stage Stairs 03
-
Introduction:

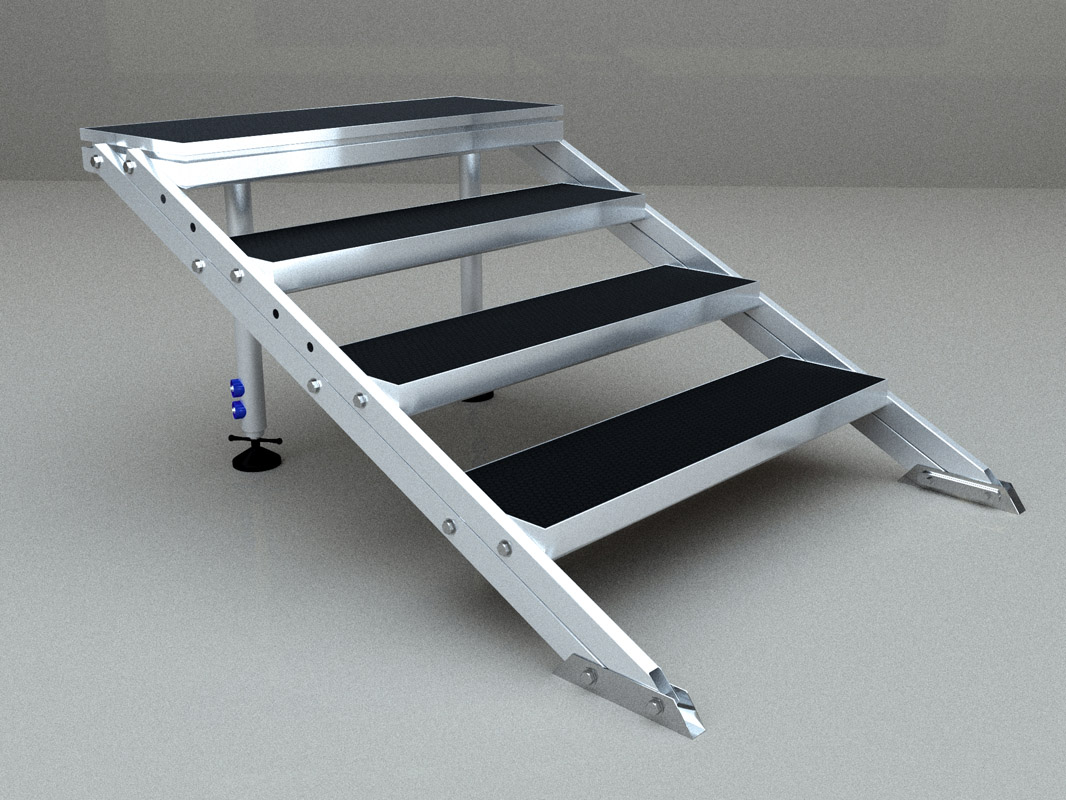

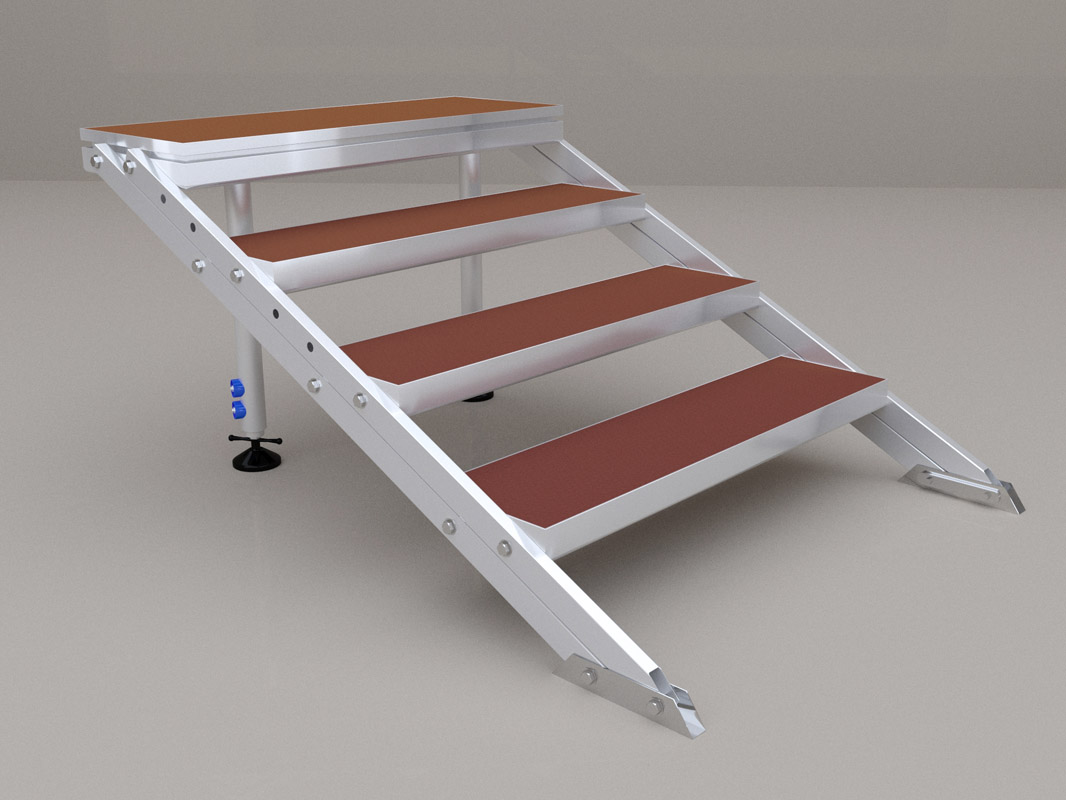

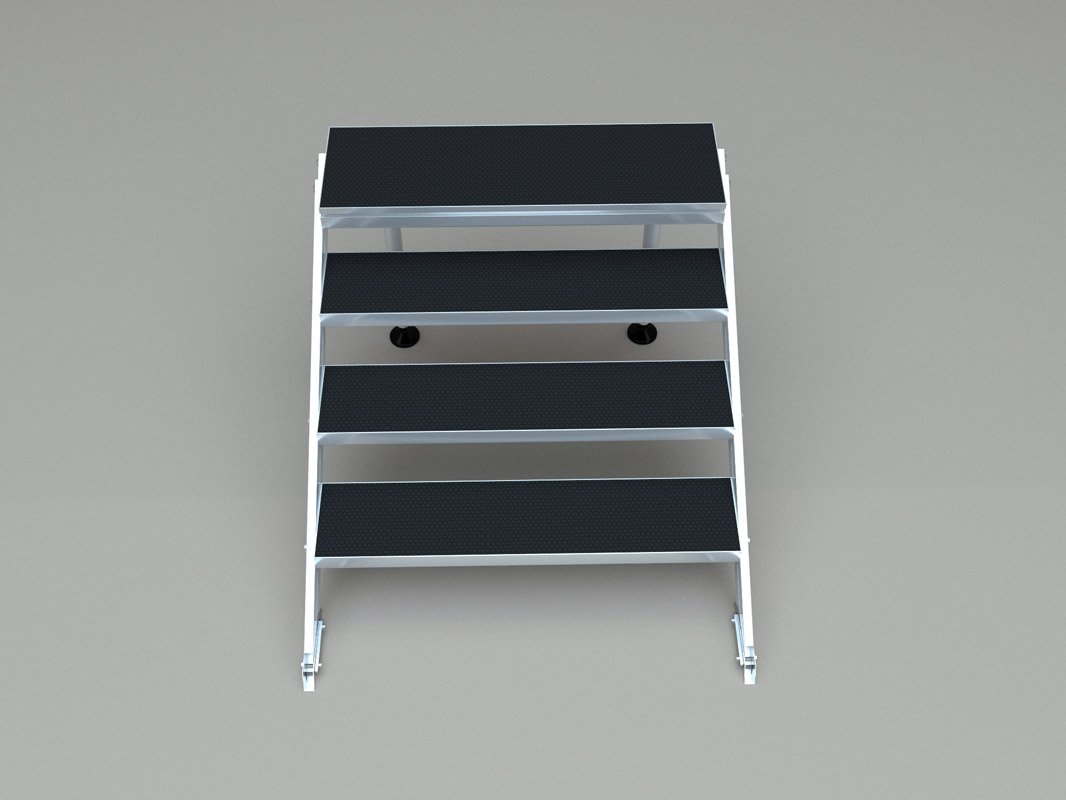

Cinow Stage Stair is adjustable. This unique, fully adjustable stair consists of separate telescopic legs which can be combined to form a adjustable staircase between 40cm and 60CM, 50cm and 80cm, 60cm and 100cm and 2M maximum height. This stair steps are flexible and have a varying angle of 30 to 60 degrees. It is designed to the maximum loading of 500KG/㎡. There are 2steps stairs, 3steps , 4steps stair ...9steps. The steps quantity depends on the stage height. Each stair come with two telescopic legs. It is possible to creat a staircase of different widths as well as several heights.
Mounting the handrails completes the staircase. The handrails is mounted to the main tube, which is bolted to the tube using the M12 Bolt.
- PDF Down
Product Detail
Features for STB Series Stage Stairs |
||||||||
Model |
Steps |
Width |
Depth for each Step |
Telescopic Legs to be matched |
Self Weight(KG) |
Volume(CBM) |
||
Stair2-1 |
2 Steps |
1M |
24CM |
30~40CM |
12.20 |
0.2267 |
||
Stair2-122 |
2 Steps |
1.22M |
24CM |
30~40CM |
13.40 |
0.2764 |
||
Stair3-1 |
3 Steps |
1M |
24CM |
40~60CM |
16.60 |
0.2943 |
||
Stair3-122 |
3 Steps |
1.22M |
24CM |
40~60CM |
18.30 |
0.3587 |
||
Stair4-1 |
4 Steps |
1M |
24CM |
60~100CM |
21.20 |
0.3618 |
||
Stair4-122 |
4 Steps |
1.22M |
24CM |
60~100CM |
23.30 |
0.4410 |
||
Stair5-1 |
5 Steps |
1M |
24CM |
70~120CM |
28.30 |
0.4293 |
||
Stair5-122 |
5 Steps |
1.22M |
24CM |
70~120CM |
33.30 |
0.5233 |
||
Stair6-1 |
6 Steps |
1M |
24CM |
80~140CM |
35.00 |
0.4916 |
||
Stair6-122 |
6 Steps |
1.22M |
24CM |
80~140CM |
40.00 |
0.5993 |
||
Stair7-1 |
7 Steps |
1M |
24CM |
90~160CM |
43.00 |
0.5620 |
||
Stair7-122 |
7 Steps |
1.22M |
24CM |
90~160CM |
46.00 |
0.6850 |
||
Stair8-1 |
8 Steps |
1M |
24CM |
100~180CM |
48.00 |
0.6983 |
||
Stair8-122 |
8 Steps |
1.22M |
24CM |
100~180CM |
51.00 |
0.7659 |
||
Stair9-1 |
9 Steps |
1M |
24CM |
110~200CM |
53.00 |
0.6947 |
||
Stair9-122 |
9 Steps |
1.22M |
24CM |
110~200CM |
58.00 |
0.8467 |
||
