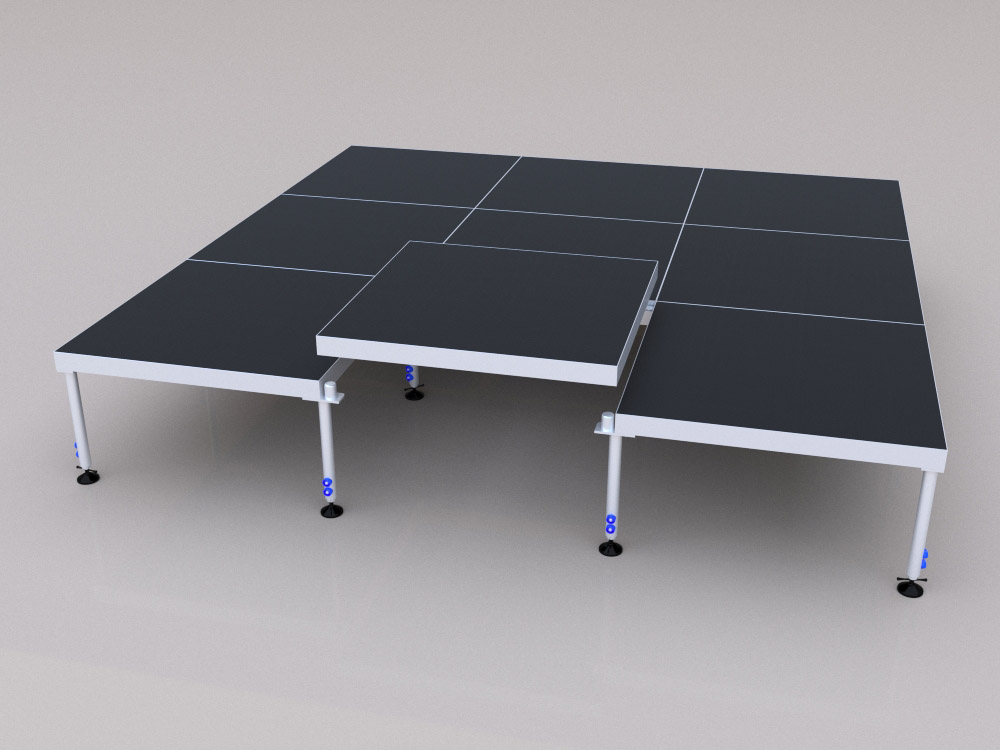

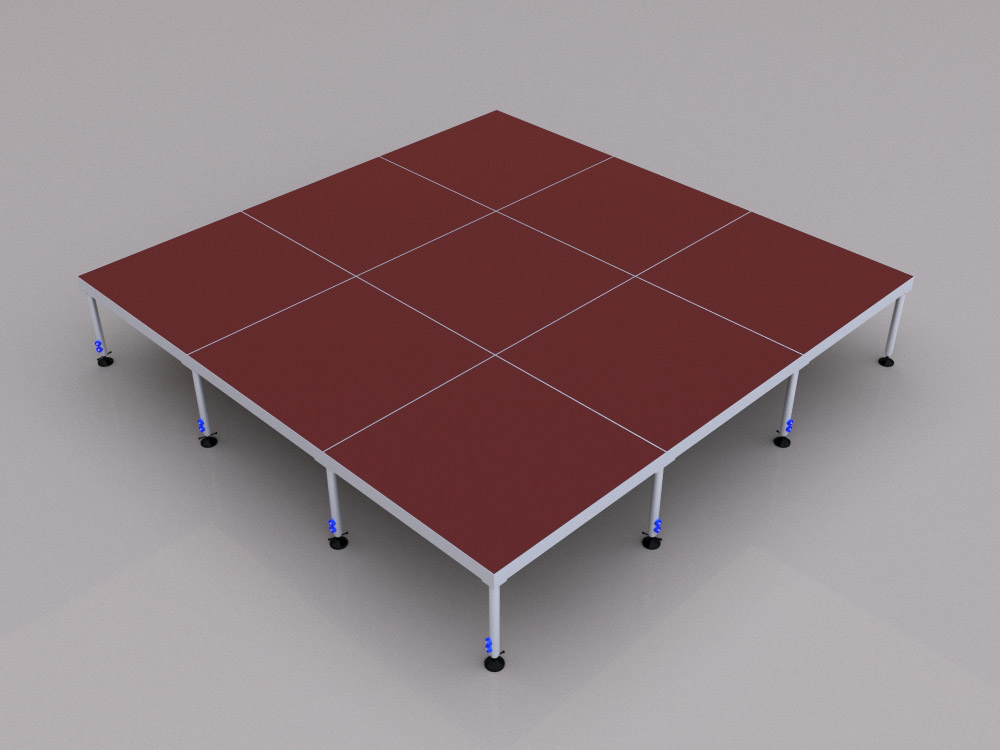

- STC Series Pro Concert Stage
-
Introduction:
Cinow STC Series Pro Concert Stages are designed for legs saving and fast setup. All the stages can be matched with telescopic legs and fixed legs. The Telescopic Legs and the legs balancers are good for any uneven floor.
- PDF Down
Product Detail
Application:
Cinow STC Series Pro Concert Stages are used in the events, indoor and outdoor concert, hotel ,exhibition market, wedding party, Arts and Cultural Performances, Amusements, the presentation of products, etc.
Features for STC Series Stages |
|
Model |
WSTC1212-4 |
Size(M) |
1.22*1.22*0.085 |
Legs needed |

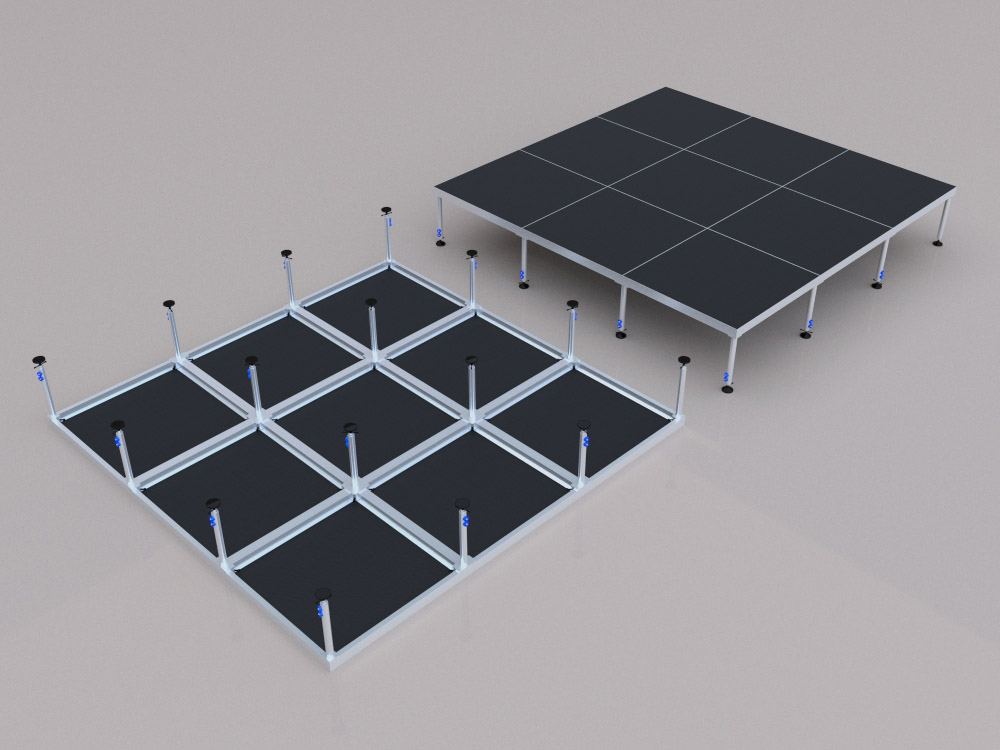

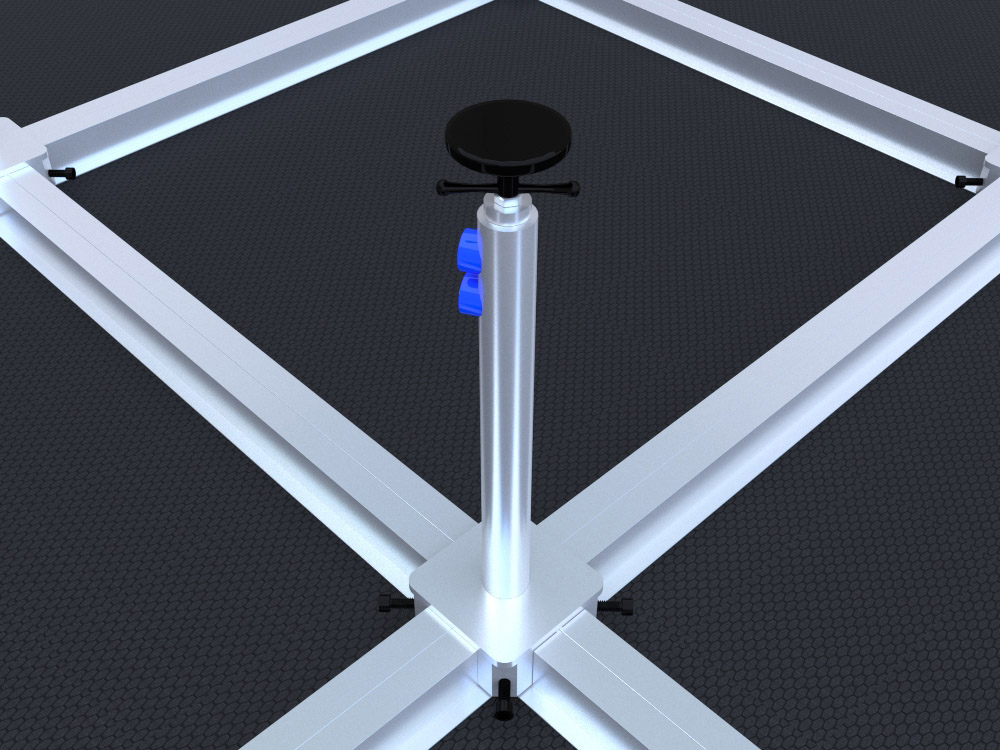

There is one leg in each node among stages |
Loading(KG) |
950KG |
Self-Weight(KG) |
31.00KG |
Volume(CBM) |
0.131 |
Top Board |
1、18MM Poplar Film Faced Plywood ,Anti-Skidding &Water-Resistant Top Layer, ( Black coating, Red Coating, Unfinished, Clear Varnish ) 2、18MM Birch Film Faced Plywood ,Anti-Skidding & Water-Resistant Top Layer, ( Black coating, Red Coating, Unfinished, Clear Varnish ) 3、18MM Environmental Laminated Melamine Plywood (Many Colors Optional) 4、18MM Clear or Frosted Durable and Scratch-resistant Acrylic, Maximum allowable temperature 70° |
Aluminum Frame |
6061-T6 Aluminum Alloy ,Our Patented Specially extruded Aluminum Profile in 3MM thickness. The Top is bolted and glued to the frame to reduce the noise and vibration. All decks are available in metric and imperial sizes. |
DO |
1、Check to ensure the stage floor is properly aligned and completely level. 2、Check the application conditions of your stage, as the type of use is directly related to safety issues like handrails. 3、Brace your staging legs when needed for stability 4、Store your stages upside down to decrease setup time and maintain your stage at regular intervals. 5、Inform your crew beforehand on safe and correct installation procedures |
DO NOT |
1、Exceed the Maximum Allowable Load , Exceed the maximum building height of the stage or its support frame 2、Mix to be matched with different stages from different factories 3、Build stages in poor conditions, unstable ground, strong and continual raining days, the payload might be reduced substantially. 4、Apply loads before knowing their exact weight ,size and load. 5、Use unfinished Cinow Stage top board in outside conditions. 6、Use the hang-on profile without reducing the maximum allowable payload. 7、Use Cinow Elements as ballast for your roof without using the proper support frame. |
Features for Telescopic Legs :
Model
H4050B
H5070B
H6090B
H7011B
H8013B
H9015B
H1017B
H1119B
H1213B
Telescopic
Range(CM)
40~50
50~70
60~90
70~110
80~130
90~150
100~170
110~190
120~130
Outter Tube
6061-T6
Round Aluminum Tube, 50*3MM.
Inner Tube
6061-T6
Round Aluminum Patented Tube,4.3*3MM.
Feet Balancer
Environmental
Round Black Rubber leg balancer in diameter 10CM. / Uniformly Distributed
Loading: 250KG.
Self Weight(KG)
1.17
1.23
1.47
1.68
1.90
1.96
2.03
2.09
2.15
Instruction:
All the height
means the total height from the floor to the stage top surface.
How it works?

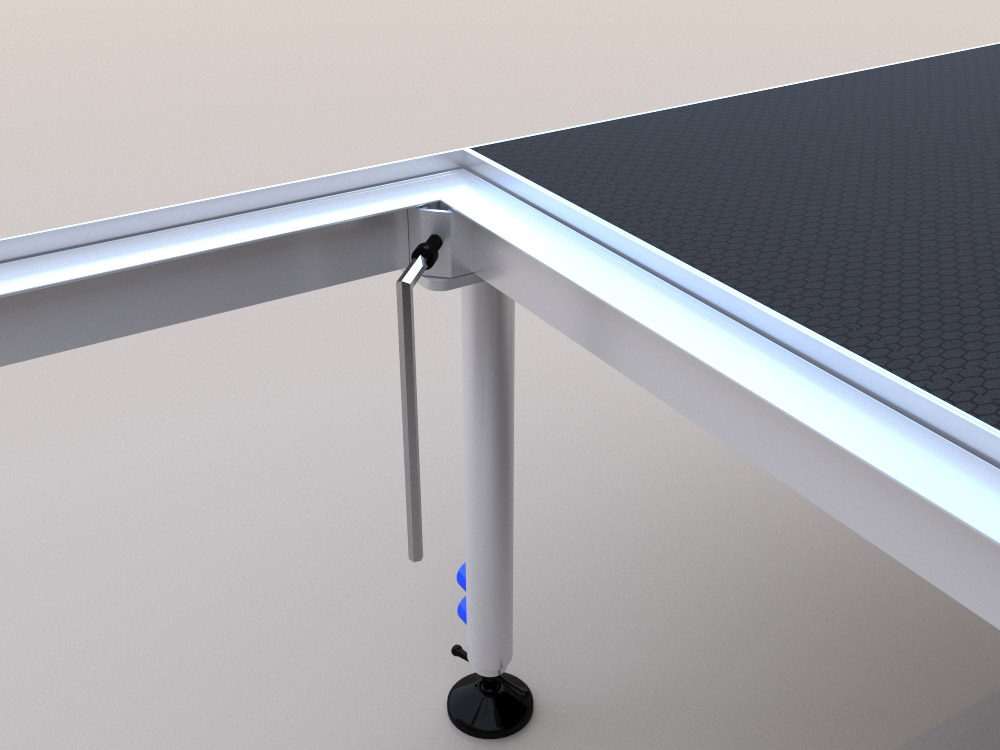

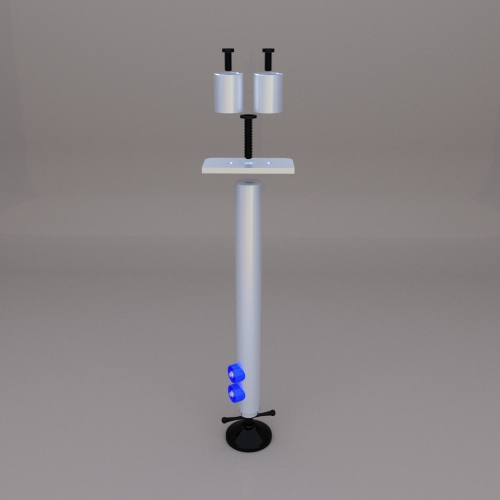

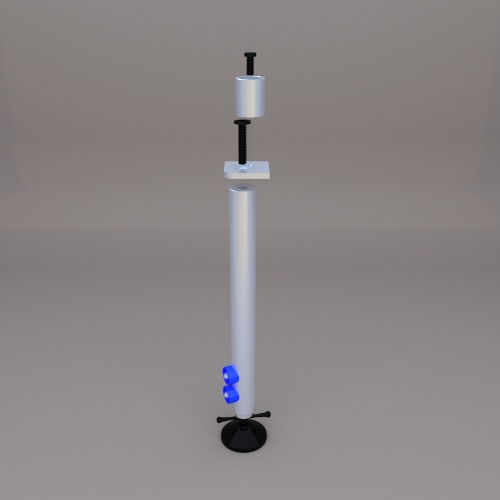

1、Telescopic Legs
combine adjustable height and high loading capacity. Sturdy Road-rugged
mechanism and built-in tape measure for easy mounting.
2、Release the two
M8 hexagon socket head screws, extend the leg to its required length, lock
the leg at both positions to guarantee optimal grip of the telescopic
mechanism.
3、Measurement on
the inside of the profile indicate the total length of the leg and safe
operating areas.
4、Rubber leg
Balancer Prevent damage to your flooring system. The balancer is good to be
fit for uneven floor. Its tilted angle is 30°. The adjustable height for
Screw Rod is 3CM

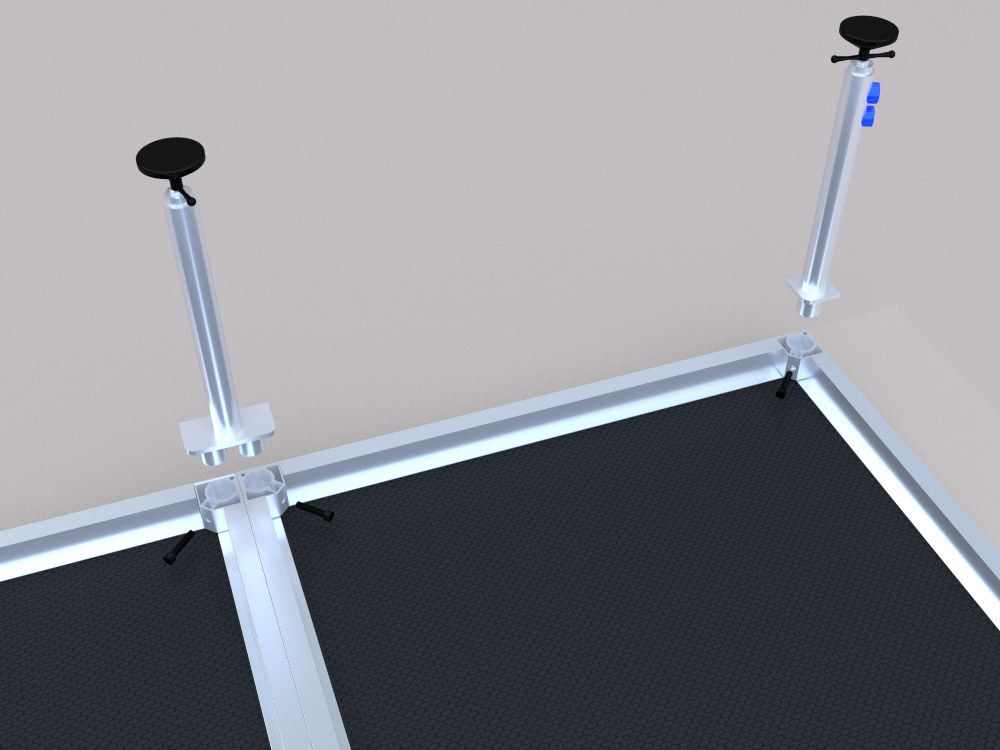

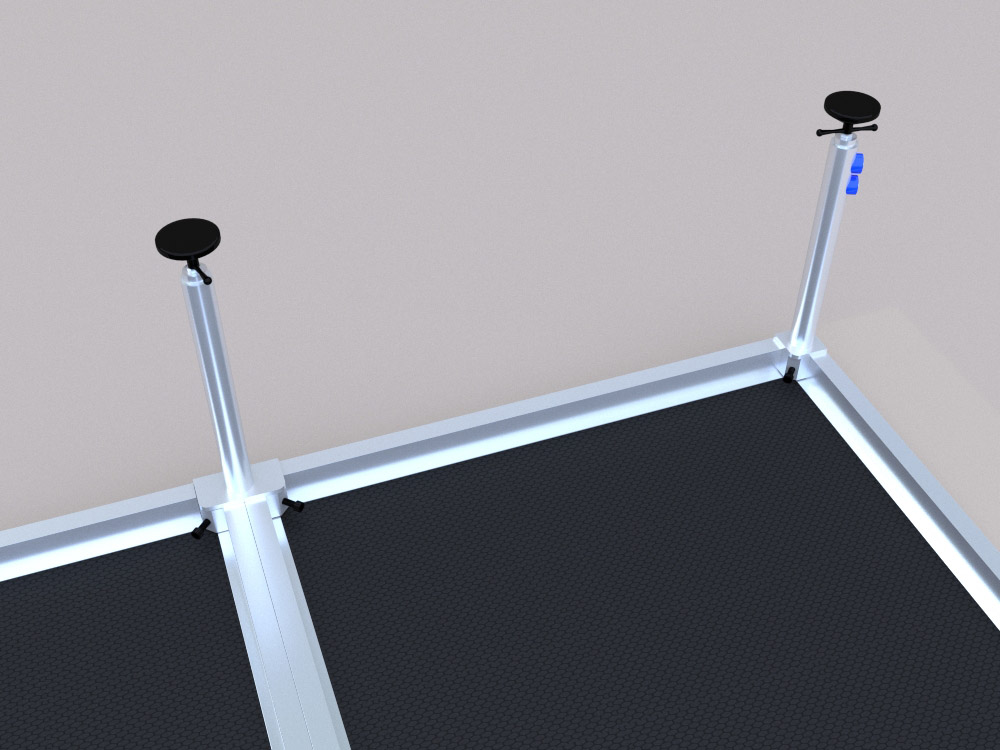

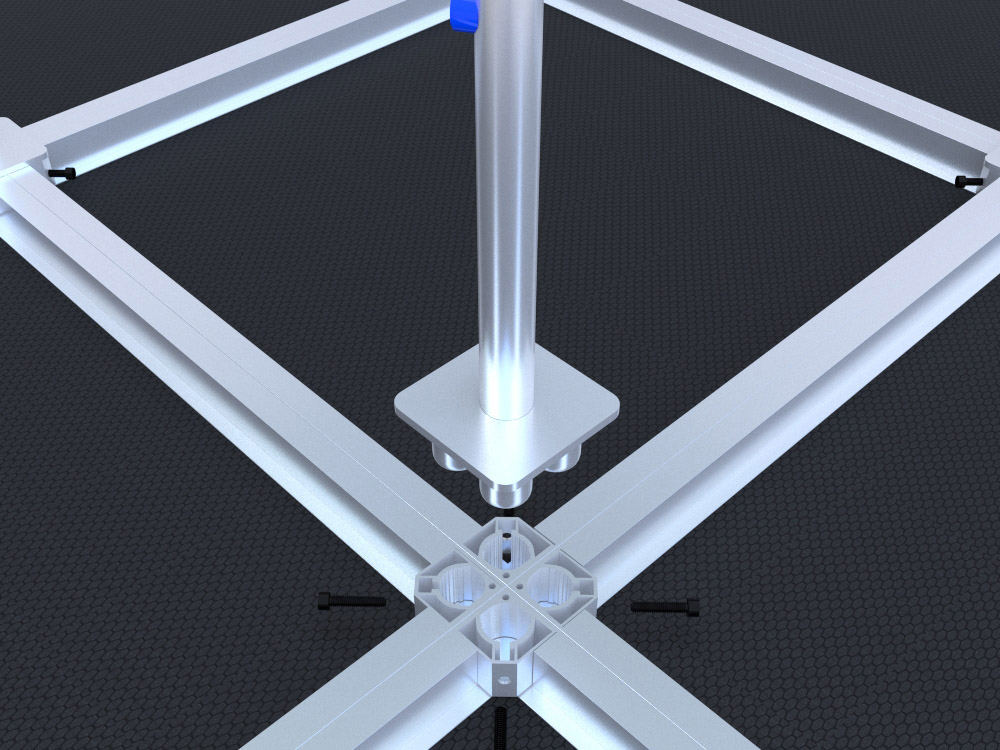

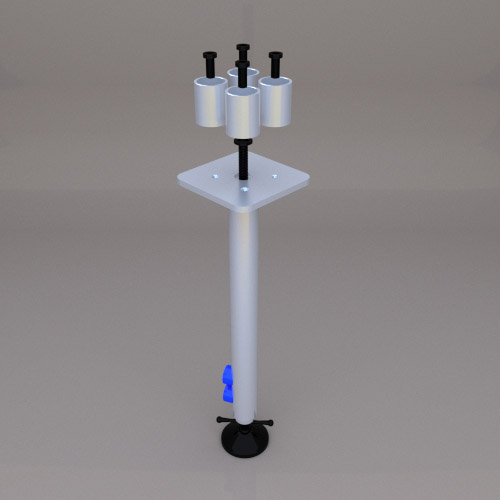

Feature for Leg Top |
|||
Model |
LG01 |
LG02 |
LG04 |
Legs can be supported |
1PC |
2PCS |
4PCS |
Self Weight(KG) |
1KG |
2KG |
3.5KG |
Photo |
|
|
|
